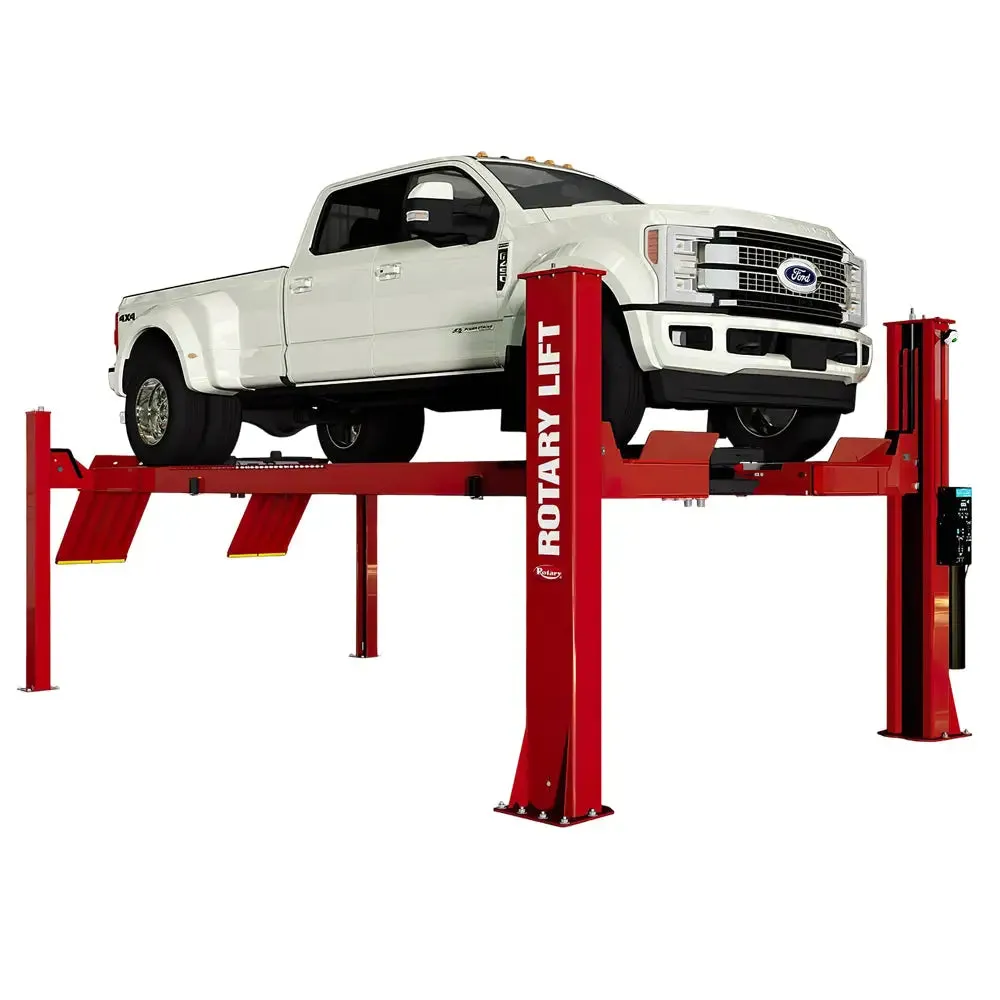

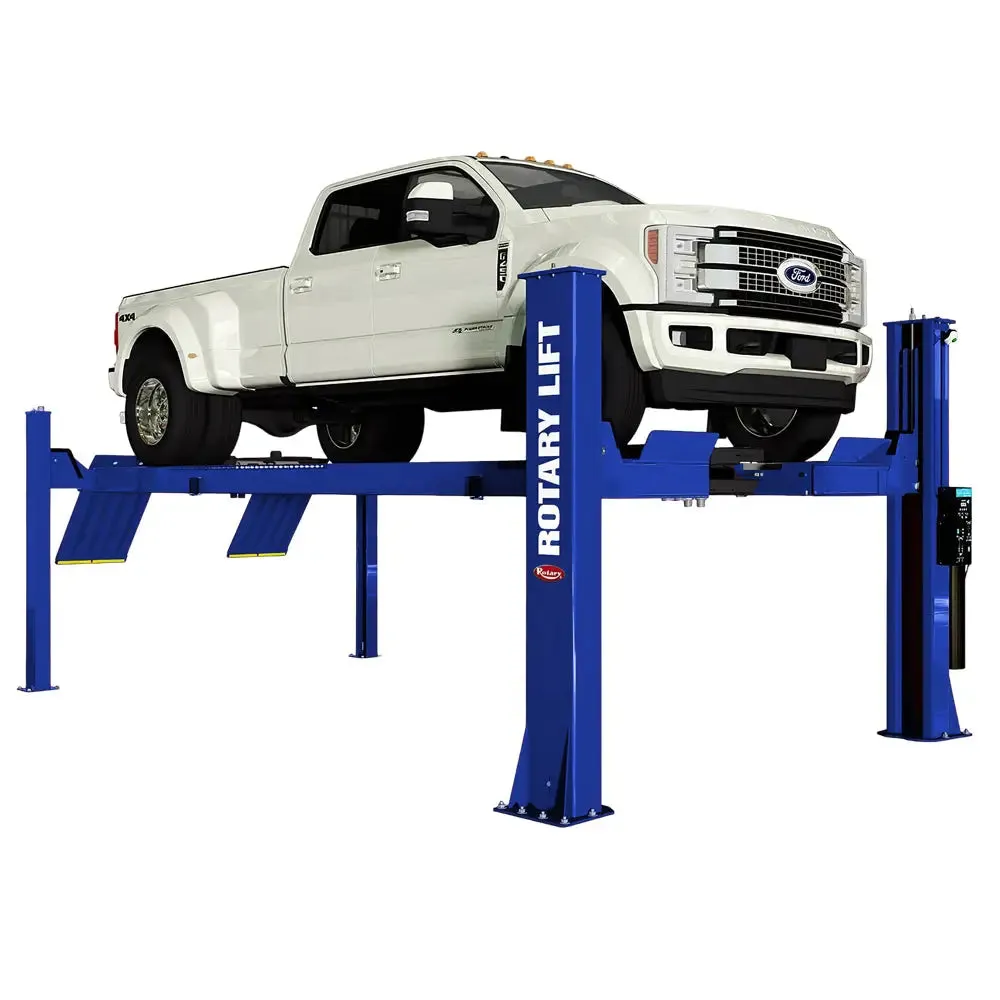

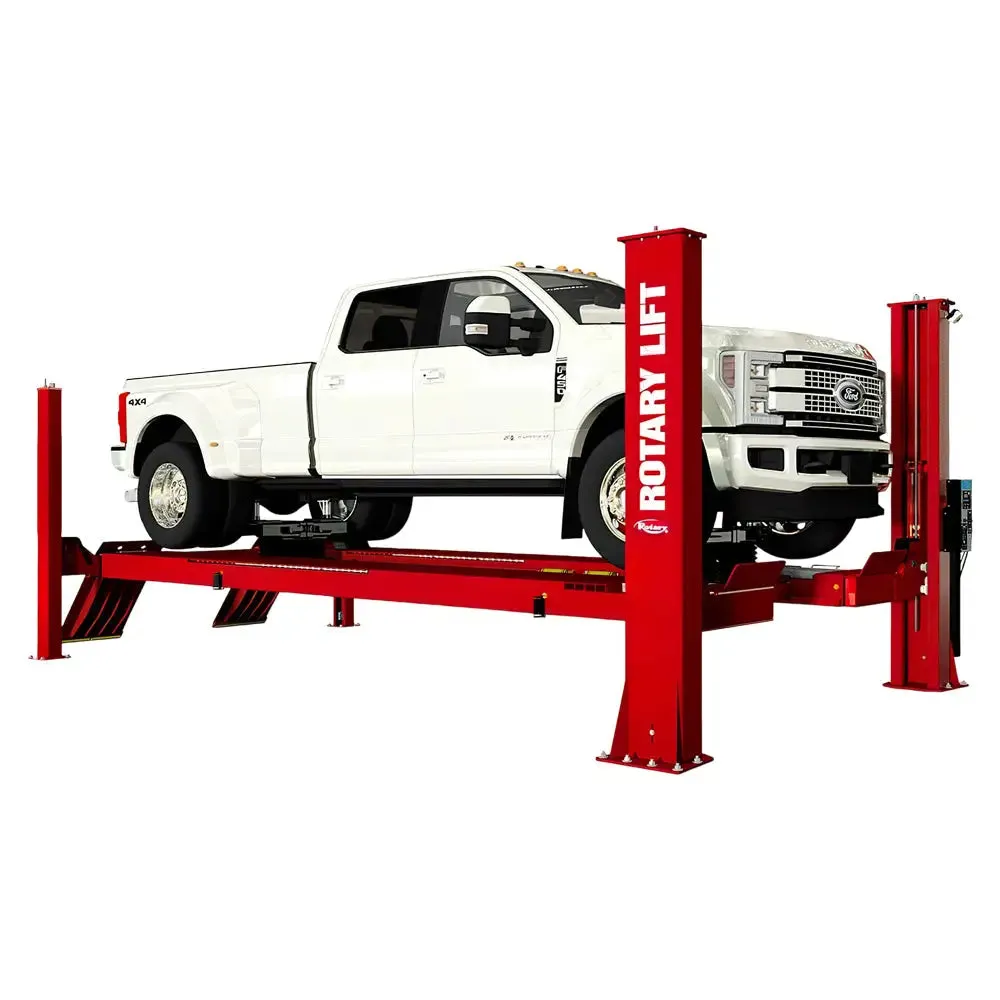

A Must for any shop, the ARRO22 Four-Post Lift (22,000 lbs) offers unparalleled flexibility with a 215-inch standard and 251-inch extended length runway. Its open-end design, air locking rear slip plates, and integrated LED lights enhance efficiency. Notably, this lift is compatible with all Rotary wheel alignment systems, providing seamless integration for professionals. Achieving ALI Gold Certification, it stands out with exclusive features and durability for optimal repairs.
Features:
- ARRO22 4-Post Lift, 22,000 lbs Capacity
- Open-End Design for Flexible Repairs

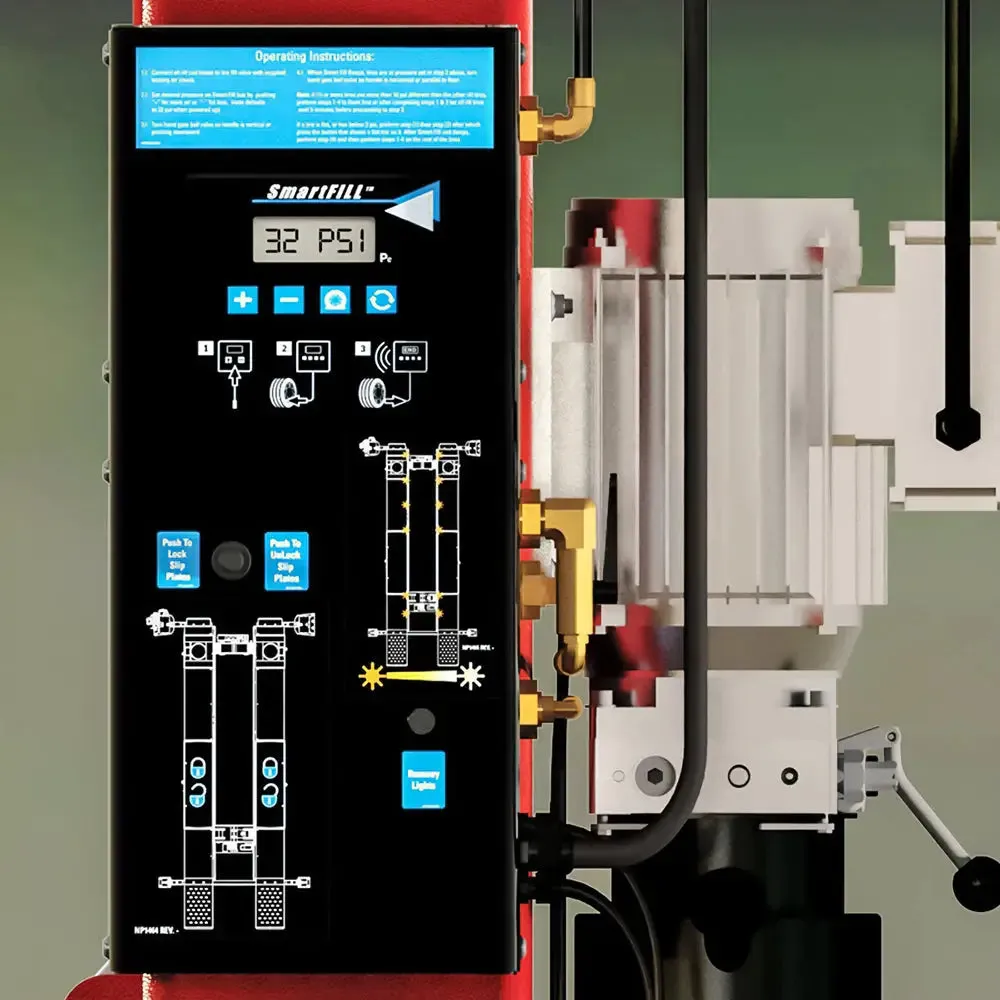

- Optional Smartfill™ for precise tire PSI adjustment
- Compatible with All Rotary Wheel Alignment Systems

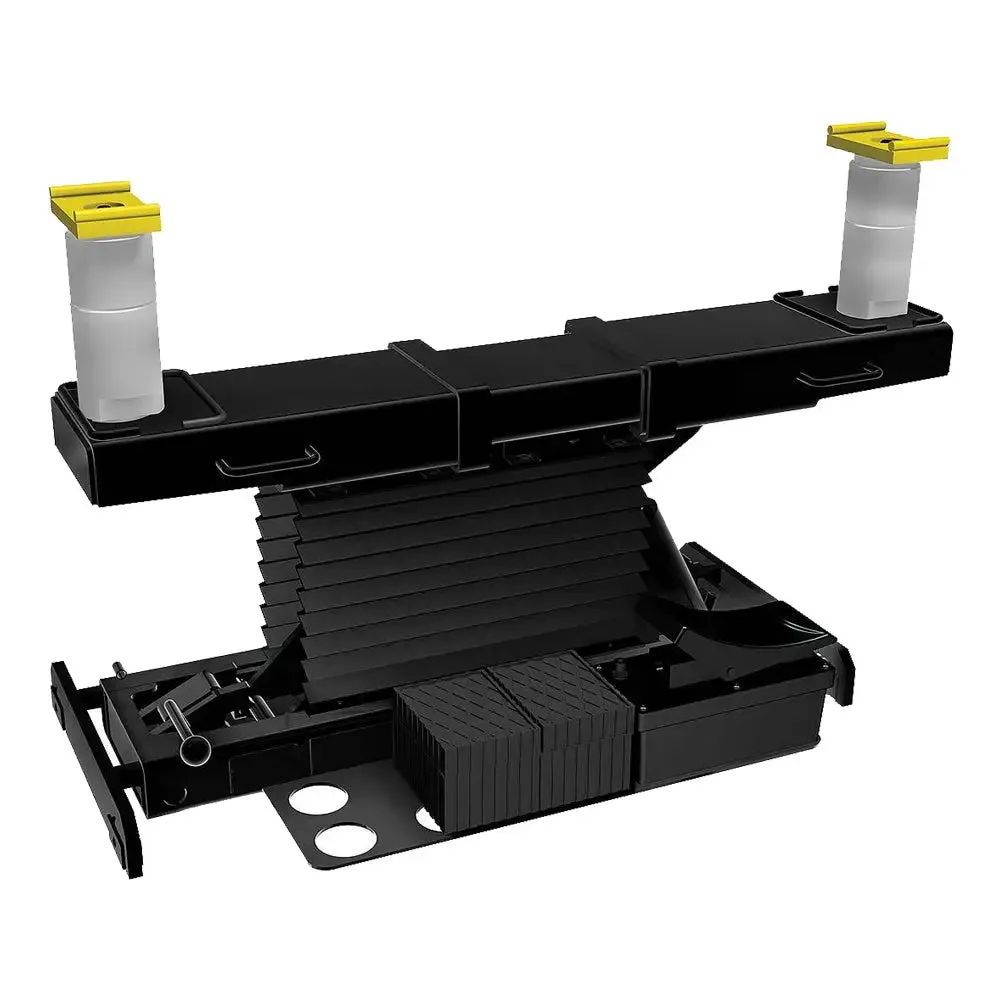

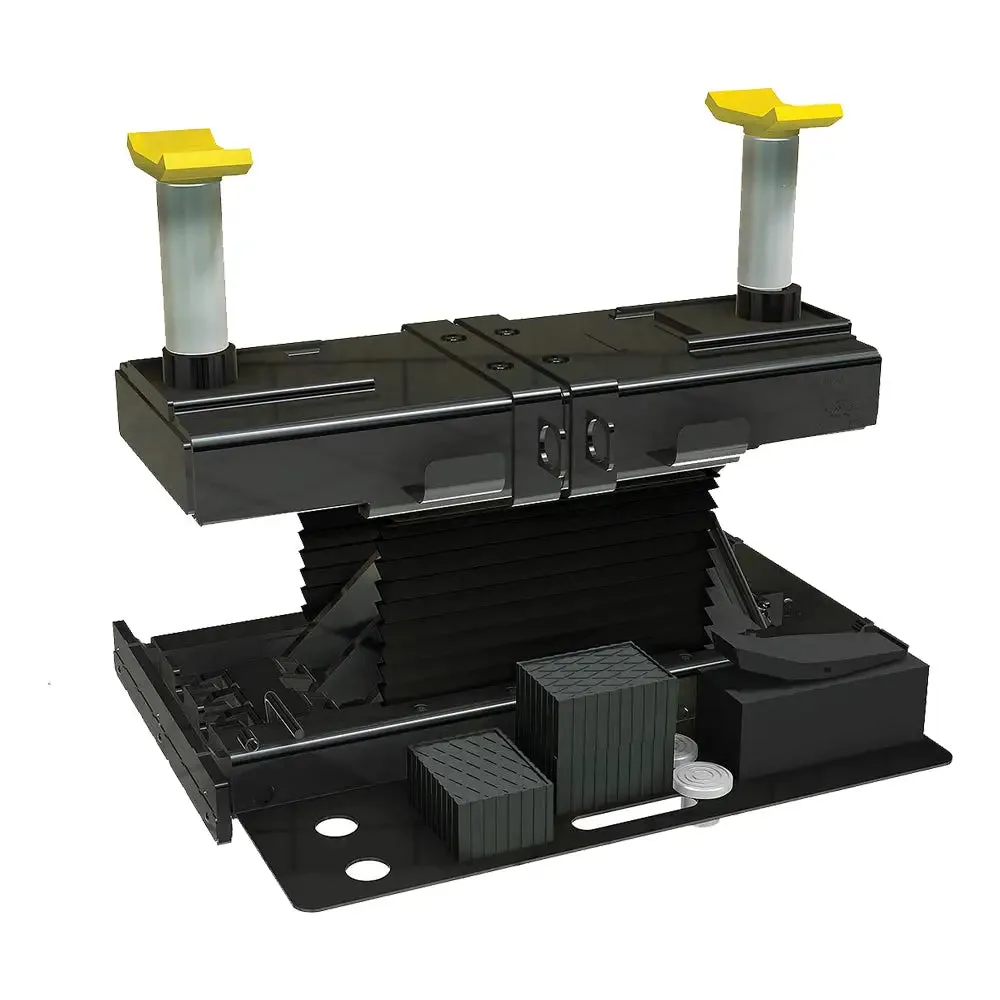

- 15,000 lbs Rear, 9,000 lbs Front Rolling Jack Capacity

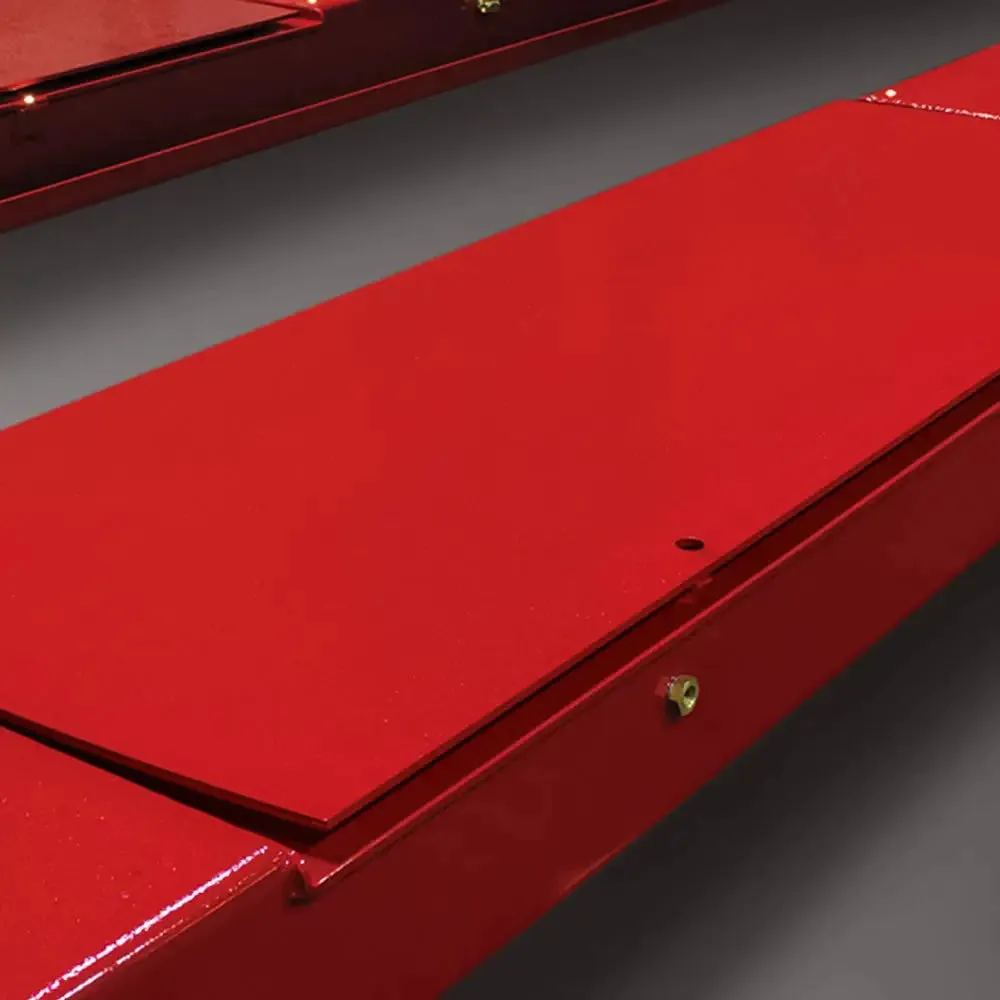

- Air Locking Rear Slip Plates for Stability

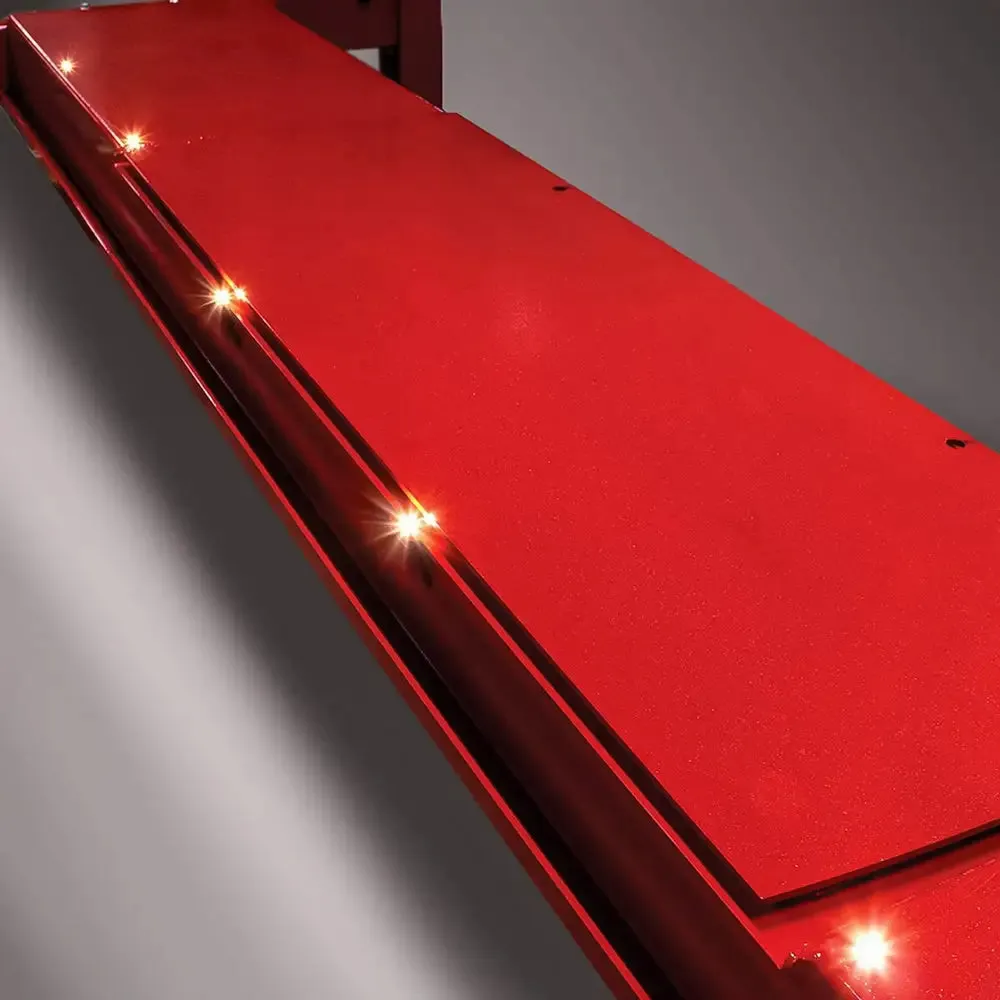

- LED Lights Integrated into Lifting Platforms

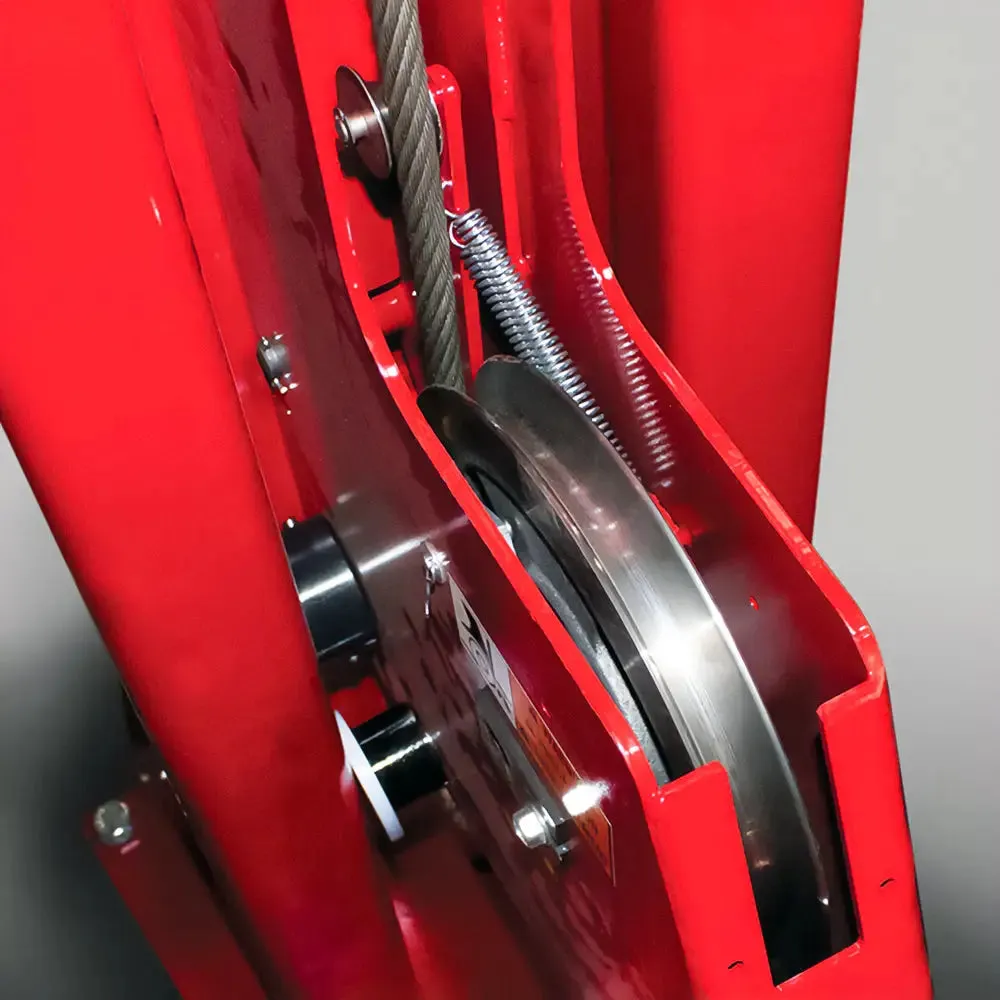

- Articulating Roller System for Extended Life
- Dual Function Sentinel Lock™ System for Security
- Single Piece Formed Runway, Non-Welded Tracks
- Internal Airline with Filter/Regulator/Lubricator

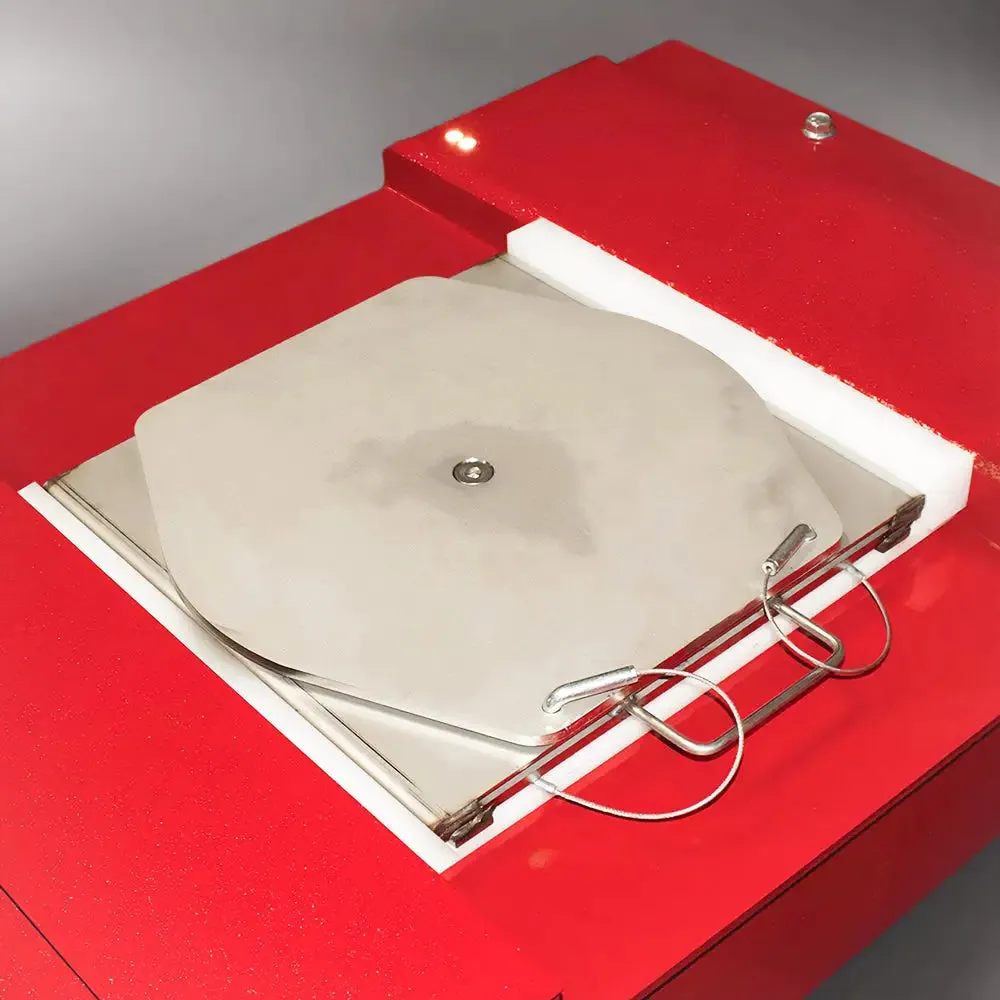

- Stainless Steel Radius Gauges for Precision
- ALI Gold Certified (ARO22xyyy) for Quality Assurance
Specs:

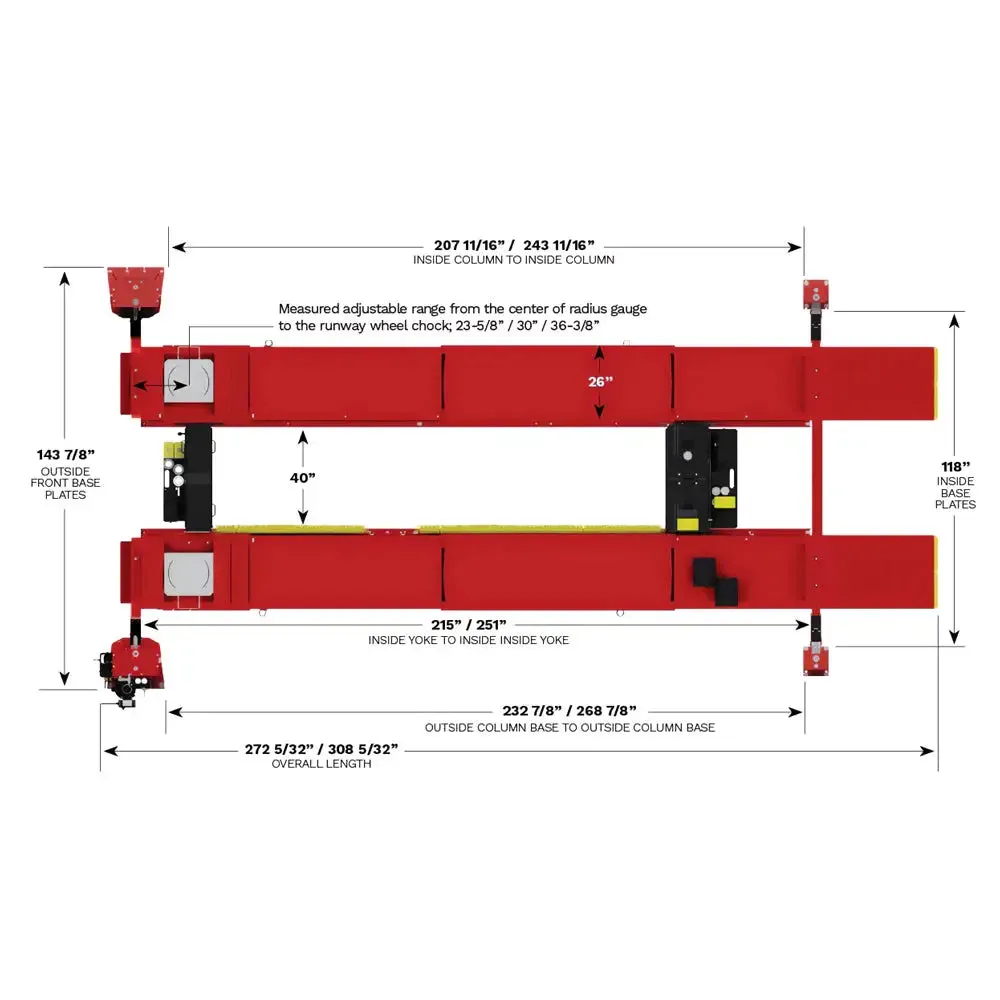

Rise* / Floor to top of runway: 74inWidth Overall: 147 7/8in

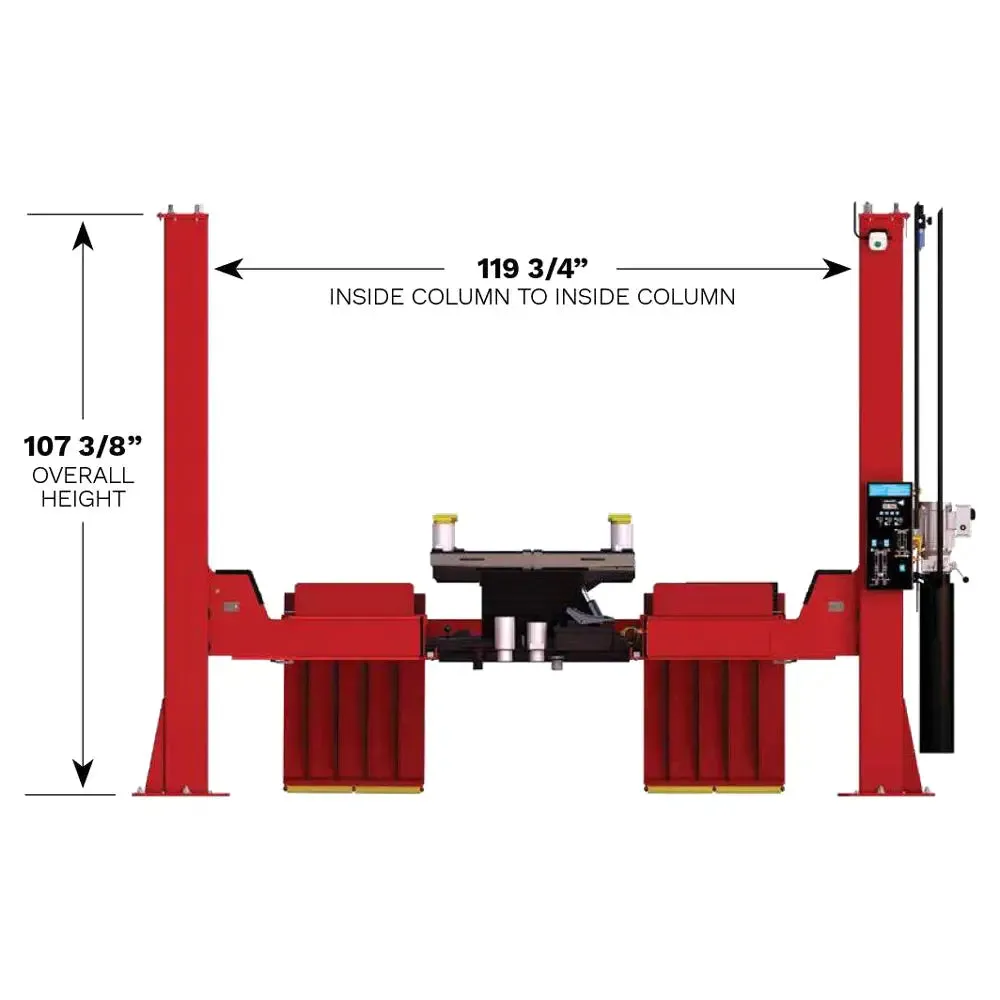

Height Overall: 107 3/8in
Inside of Columns: 122in
Between Columns: 119 3/4in
Width of Runways: 26in
Height of Runways: 8 5/16in
Width Between Runways (min./max): 40in
Lift Capacity: 22,000 lbs.
Motor: 4 HP / 208 - 230V
Voltage Single Phase*: 208v-230v
Ramp Length: 41in
Time of Full Rise: 105 seconds
ARO22N000 (S - Standard Model)
Max. Wheelbase: 194in
Max. Two Wheel Alignment: 177in
Min/Max 4 Wheel Alignment: 63in - 162in
Length Overall: 272 5/32in
Min. Bay Size: 13ft x 27ft
ARO22N001 (L/EL Extended Model)
Max. Wheelbase: 230in
Max. Two Wheel Alignment: 213in
Min/Max 4 Wheel Alignment: 63in - 198in
Length Overall: 308 5/32in
Min. Bay Size: 13ft x 30ft
Ref Name
22K Drive-On Alignment Lift
4-Post Lift, 22,000 lbs Capacity
Alignment 4-Post Lift, 22,000 lbs
Application:
Passenger VehicleHD Truck
Commercial Vehicle
For Business
Auto Repair Shops
Vehicle Service Centers
Commercial Fleets
Maintenance Garages
Alignment Centers
Tire Shops
Includes:
1 x 9K Front Jack1 x 15K Rear Jack
